Custom Linear Slot Diffusers β Ceiling or Wall Mount β Any Length & Color β 1β3 Slot Options β RAL Finish Available
$69.00
π₯ Premium Linear Slot Diffuser β Custom Size & Finish | Modern HVAC Vent Grille

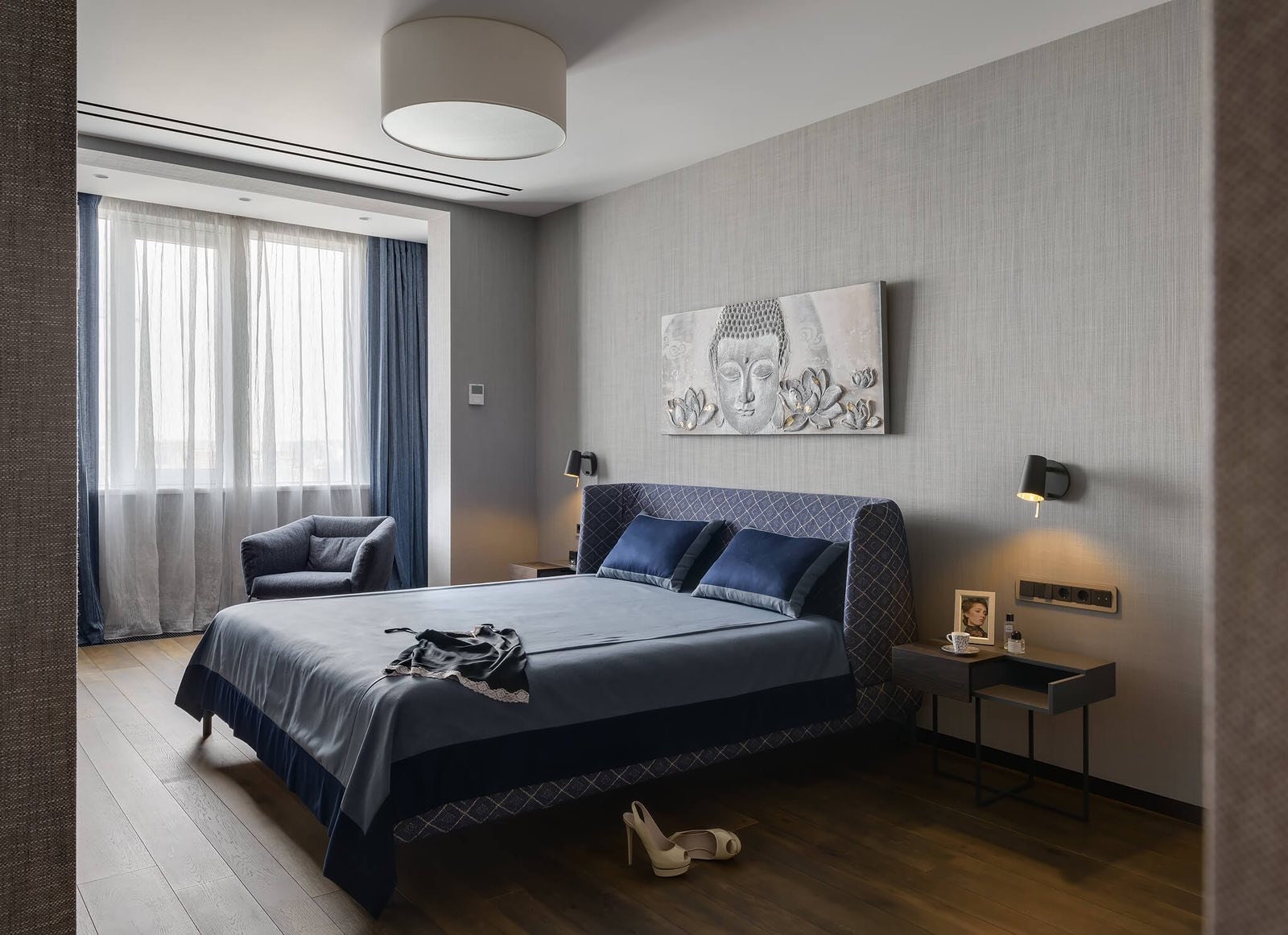

Upgrade your space with our architectural linear air diffuser, built for seamless ceiling or wall installation.
β
3 airflow slot sizes β 22mm / 33mm / 44mm, each with a directional flow adjuster
β
Custom lengths from 10β to 236β (250β6000 mm), precision-made to the millimeter
β

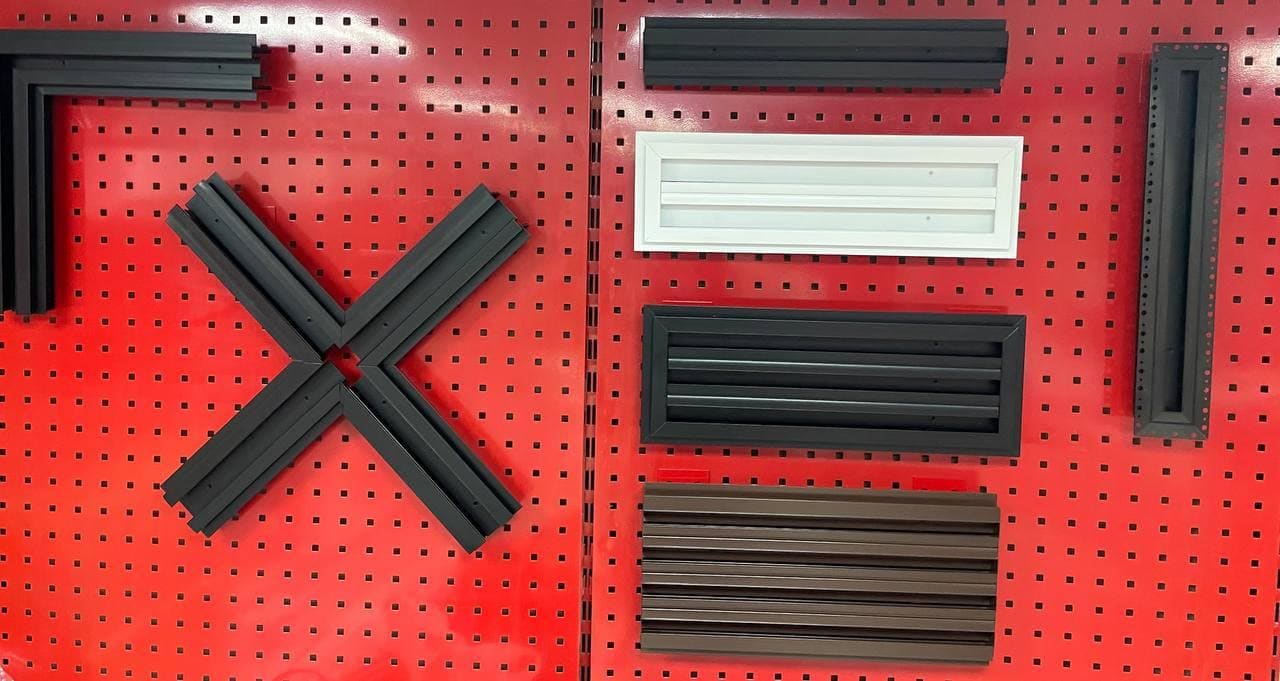

Modular design β create an infinite line or wrap the room perimeter
β
1β4 slot configurations for your airflow needs
β
End caps & corner elements for a clean, professional finish
β
Standard finishes in matte black or white β or choose any RAL color
β
Made-to-order to match your HVAC specs and interior design

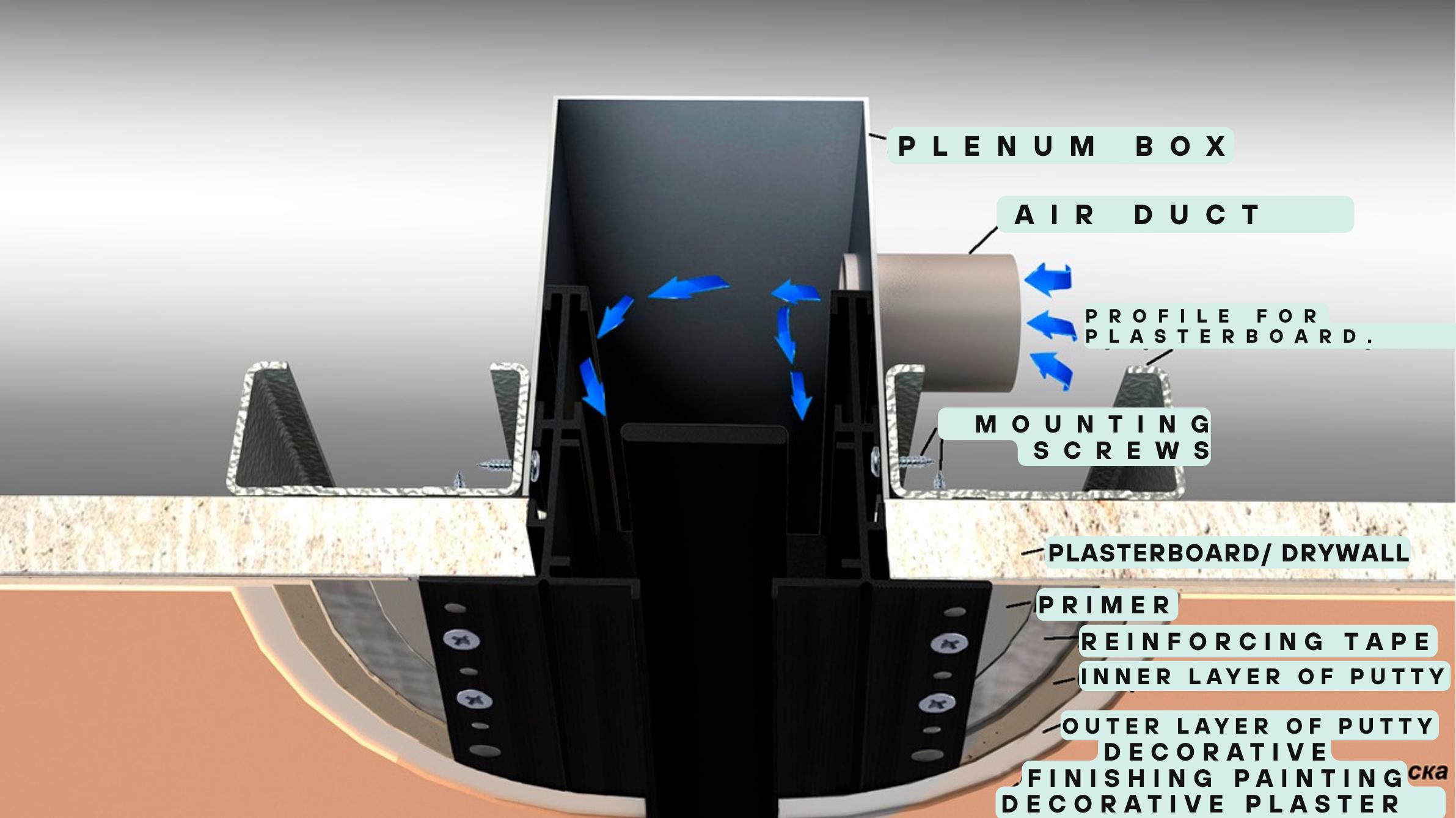

π§ Installation Instructions β Custom Linear Slot Air Diffuser with Hidden Mount

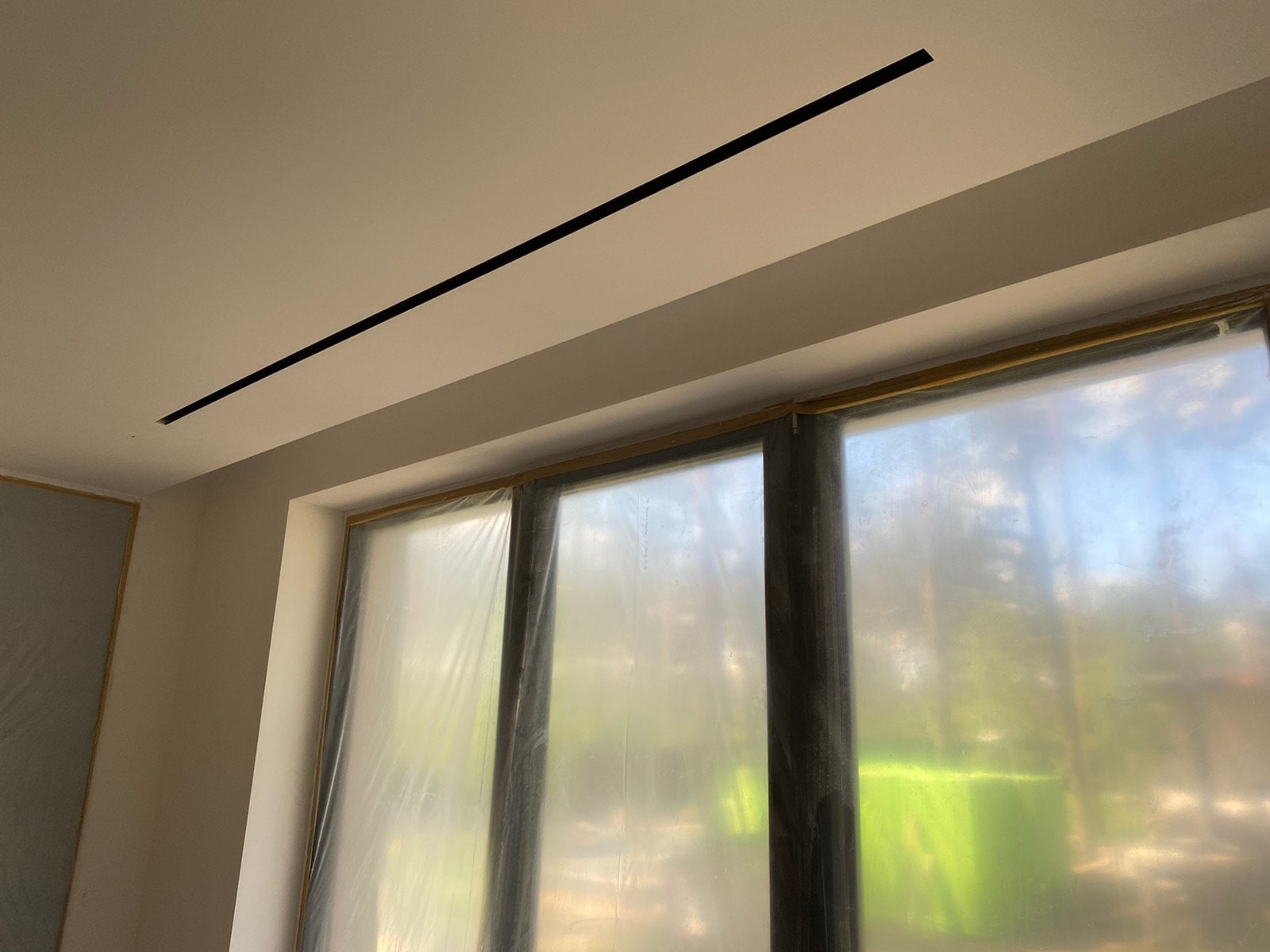

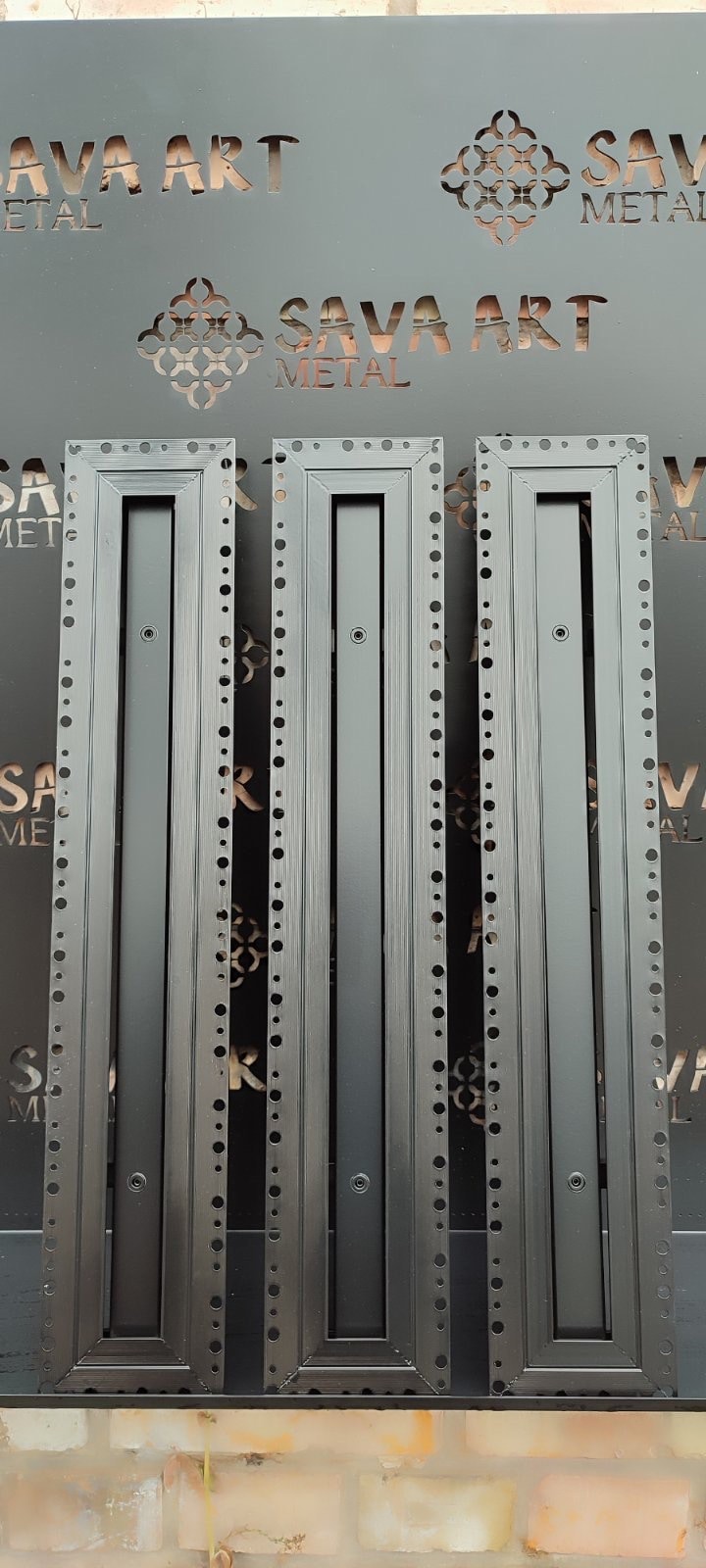

This modern linear air diffuser is designed for seamless integration into drywall ceilings. It features a hidden perforation mounting system, making it perfect for clean, minimalist interiors.
π Step-by-Step Installation:
1. Mark the ceiling layout according to the custom grille dimensions.
2. Assemble the ventilation adapter and temporarily fix it in place.
3. Secure the adapter using Knauf steel profiles for a rigid, long-lasting frame.
4. Install the drywall ceiling over the ventilation structure.
5. Attach the perforated grille directly to the drywall using metal screws every 10β15 cm around the perimeter.
6. Prime the surface and grille joints with a roller.
7. Apply the base coat of joint compound.
8. Reinforce all seams using Knauf tape for flawless finishing.
9. Apply the final skim coat of compound.
10. Sand and re-prime the surface to prepare for final painting or decorative coating.
βΈ»
β
Professional Recommendations for HVAC Efficiency:
β’ The adapter must cover the entire length of the custom grille.
β’ For balanced airflow, include at least one duct connection per 1000 mm (39β) of grille length.
β’ Ensure a 1000 mm (39β) gap between supply and exhaust connections for optimal air circulation.
β’ The installation height of the adapter should be at least 150 mm (6β) above the diffuser.
Text me to get a quote!
Shipping from Ukraine
Processing time
1-10 business days
Customs and import taxes
Buyers are responsible for any customs and import taxes that may apply. I'm not responsible for delays due to customs.
Payment Options
Returns & Exchanges
I gladly accept returns, exchanges, and cancellations
Just contact me within: 3 days of delivery
Ship items back to me within: 30 days of delivery
Conditions of return
Buyers are responsible for return shipping costs. If the item is not returned in its original condition, the buyer is responsible for any loss in value.
Questions about your order?
Please contact me if you have any problems with your order.
Frequently Asked Questions
Can I choose any design or pattern for my order? π€π¨
Absolutely! You can choose any design or pattern you like from the internet (Pinterest, for example). There are no limits to your creativity! β¨
We can even create a custom pattern based on a hand-drawn sketch. All we need from you is a screenshot or an image of the design you want, and weβll take care of the rest! π·β
Can you make the item in any size? ππ§
Of course! We can craft your order in any size with an accuracy of up to 0.1mm. Precision is our priority! β
All we need from you are the exact measurements that matter for your project. From there, we take care of everything! β¨
Before production begins, we always start by creating detailed drawings π, showing both the design and dimensions. This allows you to double-check everything and approve the final specs before we move forward with manufacturing. π
What is the production time? β³βοΈ
The production time depends on the type of product you order:
β
Ventilation Grille β 5-8 business days from the moment the drawings are approved.
π¬ Mailbox β 5-8 business days from the moment the drawings are approved.
π οΈ Floor Hatch β 3 weeks from the moment the drawings are approved.
We always start with creating detailed drawings for your approval to ensure accuracy before moving forward with production. π
